Solar Garden light

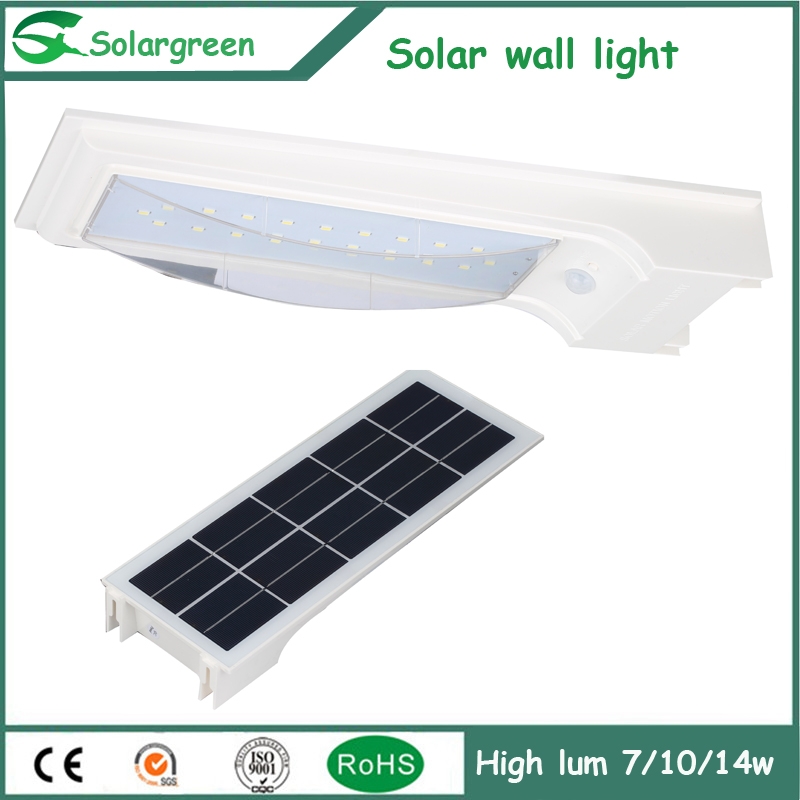

1W-14W All in one Solar Wall/Parking/Fence/Garden/Yard Light

Solar LED Wall Mounted light
1w,5w,7w,10w,14w
  • Construction

    Feature:



    Solar light integrates all components for outdoor lighting.

    Easy, quick installation, maintenance free.

    Mount on  wall.

    Built-in 360 degree micro sensor regulates light output automatically.

    Light control plus motion sensor


    Product Introduction
     ______________________________________________________________________________
     LED & Optics

    Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (6500-7000K)

    Precise integrated optic lens in high intensity PC material with IESNA Type I provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.

    Electronics  -   IP 65waterproof charge controller / Sensor / connector

    Battery   -High quality lithium battery from qualified supplier, stable quality performance

    No. Model Specification
    1 Solar wall light
    SGS-WM-302  1W
     1. Solar panel:5V 0.5W (Poly Crystalline Silicon)
     2. Battery:3.2V 1200mAH (Li-Ion battery)Lifetime 3-5 years
     3. LED power:12V  0.5W+0.5W  (Samsung chip)Life time>50,000hours,
        Whole lamp lumens: 80 LM
     4. Beam angle:120°
     5. Charge time:8 hours
     6. Work Mode: 12 hrs. Full power when motion sensed, half power when nobody around.
     7. Suggest install height: 2-4 meters
     8. Install distance: 6-9 meters
     9.Lamp material: PS material,White or Black
    10.Waterproof: IP65
    11.Warranty: 2 years
    12.Product size: 170*73*56mm;Carton size :46*39*19cm/35pcs,GW:8.3Kg
    2 Solar wall light
    SGS-WM-301  0.6W
     1. Solar panel:5V 0.4W (Poly Crystalline Silicon)
     2. Battery:3.2V  500mAH (Li-Ion battery)Lifetime 3-5 years
     3. LED power:12V  0.3W+0.3W  (Samsung chip)Life time>50,000hours,
        Whole lamp lumens: 40 LM
     4. Beam angle:120°
     5. Charge time:8 hours
     6. Work Mode: 12 hrs. Full power when motion sensed, half power when nobody around.
     7. Suggest install height: 2-4 meters
     8. Install distance: 6-9 meters
     9.Lamp material: Stainless steel material  Color: Slivery or Black
    10.Waterproof: IP65
    11.Warranty: 1 years
    12.Product size: 180*50*70mm
    3 Solar wall light
    SGS-WM-303  5W
     1. Solar panel:5V 4W (Poly Crystalline Silicon)
     2. Battery:3.7V 3600mAH (Li-Ion battery)Lifetime 3-5 years
     3. LED power:12V  5W  (Samsung chip)Life time>50,000hours,
        Whole lamp lumens: 650 LM
     4. Beam angle:120°
     5. Charge time:6 hours
     6. Work Mode: 12 hrs. Full power when motion sensed, half power when nobody around.
        Keep 5 days without charge agian.
     7. Suggest install height: 2-4 meters
     8. Install distance: 6-9 meters
     9.Lamp material: PS material  White or Black
    10.Waterproof: IP65
    11.Warranty: 2 years
    12.Product size: 240*140*45mm;Carton size:51*26*31.5cm/20pcs,GW:11.4kg
    4 Solar wall light
    SGS-WM-304  7W

     1. Solar panel:5V 5W (Poly Crystalline Silicon)
     2. Battery:3.7V 4400mAH (Li-Ion battery)Lifetime 3-5 years
     3. LED power:12V  7W  (Samsung chip)Life time>50,000hours,
        Whole lamp lumens: 910 LM
     4. Beam angle:120°
     5. Charge time:6 hours
     6. Work Mode: 12 hrs. Full power when motion sensed, half power when nobody around.
        Keep 5 days without charge agian.
     7. Suggest install height: 3-4 meters
     8. Install distance: 7-9 meters
     9.Lamp material: PS material  White or Black
    10.Waterproof: IP65
    11.Warranty: 2 years
    12.Product size: 300*140*45mm
    5
