Hybrid solar air conditioner

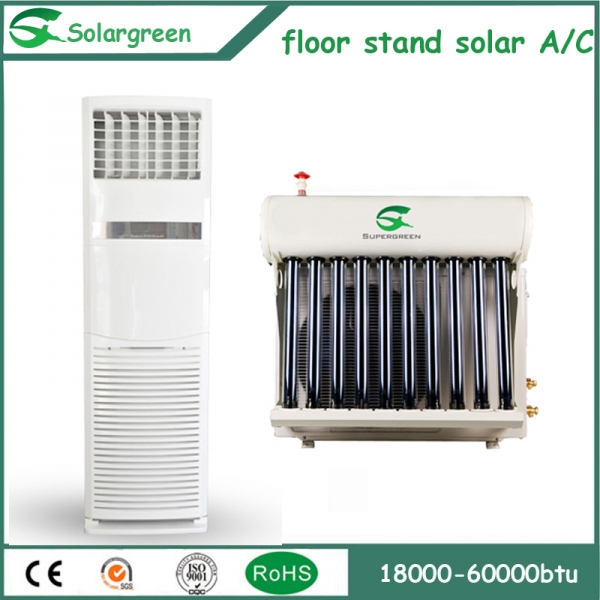

Vacuum tube Floor Standing type Hybrid solar air conditioner

Floor Standing Hybrid solar air conditioner
20000btu-60000btu
  • Product Details
    When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat ex-changer of the solar collector,
    In sunshine time ,the vacuum tube can absorb the sunshine to heat the water of the water tank, then the hot water will translate the heating to refrigerant by the ex-changer, then help the compressor heat the temperature and increase the pressure of the refrigerant again,so it  just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy.

    Hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power.The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system with compression system by using environmental-friendly media in cooling and heating on the basis of traditional air-conditioner technology to achieve energy-saving and environment protection.

    Product Introduction

    (9000BTU-24000BTU) for Wall Mounted range. Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series.
    1. on Grid Working with 50% solar energy
    2. Supreme high efficiency rating reach to 4.0
         3.Fashion and Elegant Design, LED Display,Quiet Running
         4.Vacuum thermal tube solar collector ,with easy installation and affordable cost
         5. Toshiba Compressor
         6. Blue Coating Heat Ex-changer (Better heat transfer effect)
         7.100% Copper Connection Pipes With Insulation
         8.Environmental Friendly Gas R410A


    Model No.     TKF(R)-60LW TKF(R)-72LW TKF(R)-100LW TKF(R)-120LW TKF(R)140LW TKF-180LW
    Power Supply:220-240VAC, 1PH, 50/60Hz
    Performance
     Capacity Cooling Btu/h 20000 24000 36000 41000 48000 60000
        W 6000 7200 10000 12000 14000 18000
      Heating Btu/h 22000 26000 38000 43000 52000 66000
        W 6600 8000 11000 13000 15000 20000
    Noise Indoor dB(A) ≤47 ≤51 ≤51 ≤53 ≤53 ≤55
      Outdoor dB(A) ≤56 ≤58 ≤58 ≤60 ≤60 ≤62
    Air Circulation   m³/h 800 1250 1700 1800 1900 2500
    Suitable Area   25~42 30~48 42~67 50~80 58~93 75~125
    EER   W/W 3.88 3.82 3.87 3.96 3.87 3.87
        Btu/h/w 13.24 13.03 13.2 13.51 13.2 13.2
    Power Consumption
    Power Input Cooling W 1350~1560 1700~1900 2400~2640 2900~3150 3500~3740 4500~4740
    Rated Current Cooling A 6.14~7.09 7.73~8.64 10.91~11.95 13.18~14.32 15.91~17 20.5.91~22.5
    Vacuum Tube Diameter*Length*Pcs 47mm*620mm*11 47mm*620mm*11 47mm*700mm*13 47mm*1200mm*13 47mm*1200mm*13 47mm*1200mm*13
    Dimensions
    Indoor Unit Net mm 490*280*1730 550*300*1790 550*300*1790 550*390*1790 550*390*1790 550*390*1790
      Shipping mm 580*390*1790 630*380*1900 630*380*1900 630*470*1900 630*470*1900 630*470*1900
    Outdoor Unit Net mm 850*300*755 940*300*755 950*355*835 950*355*1255 950*360*1255 950*360*1255
      Shipping mm 950*400*770 990*400*770 1140*460*910 1140*460*1340 1140*460*1340 1140*460*1340
    Water Tank Shipping mm 980*400*370 980*400*370 1120*400*400 1120*400*400 1120*400*400 1120*400*400
    Vacuum Tube Shipping mm 1270*280*210 1270*280*210 1270*280*210
    Weight
    Indoor Unit Net/Gross kg 39/42 43/47 44/48 51/55 52/56 65/76
    Outdoor Unit Net/Gross kg 50/52 55/58 73/76 95/100 97/102 115/136
    Solar Collector Net/Gross kg 16/17 16/17 18/21 23/26 23/26 23/26
    Loading Qty in 20feet sets 33 31 27 18 18 18
    40HQ sets 82 76 66 45 45 45
