ACDC on grid solar air conditioner

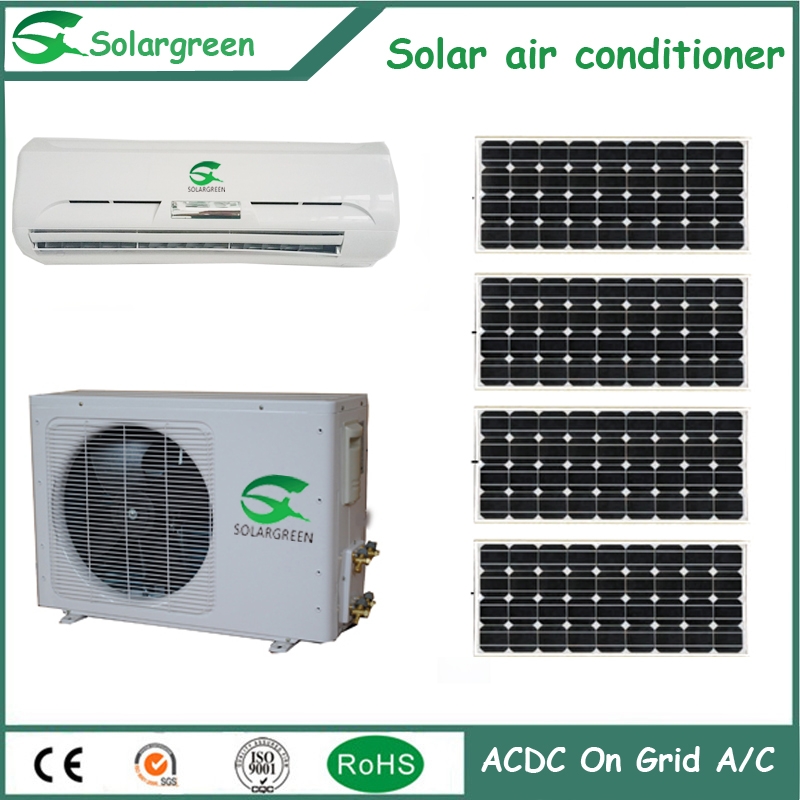

9000BTU photovoltaic type 90 percent Energy Saving ACDC On Grid Hybrid Solar air conditioner

ACDC On Grid Solar Air Conditioner
Available from 9000btu-24000btu
  • ACDC on grid solar air conditioner
     -----work with solar panel and grid electricity
     -----Even when air conditioner dont work ,solar panel can still generate power and make the power meter converse ,to reduce electricity bill for home using.
     which is not for off grid , but in day nearly dont use grid power (saving 90% if comes with suggested solar panels),and in night use grid power,dont need extra inverter or controller.
    On grid PV Solar Air-Conditioner(without panel and bracket)
    Power Supply:208~240V,50/60HZ
    Model No. KF(R)-26GW/NH KF(R)-35GW/NH KF(R)-52GW/NH  KF(R)-72GW/NH
    Ton 0.75ton 1ton 1.5ton 2ton
    HP 1HP 1.5HP 2HP 3HP
    Performance
     Capacity Cooling Btu/h 9000 12000 18000 24000
    W 2600 3500 5200 7200
    Heating Btu/h 10000 13000 20000 27000
    W 2800 3700 5400 7900
    Noise Indoor dB(A) ≤40 ≤42 ≤44 ≤46
    Outdoor dB(A) ≤50 ≤52 ≤55 ≤58
    Air Circulation m³/h 450 550 750 1050
    Suitable Area 10~15 12~25 20~35 25~45
    EER W/W 5.2 4.7 4.5 4.4
    SEER Btu/h/w 35 34 34 33
    HSPF Btu/h/w 12 12 13 14
    Operating Range C/F 16C-31C/5F-122F
    Design pressure PSI 550 / 340
    Refrigerant Oil VG74
    Refrigerant R410A
    Compressor  TOSHIBA (ROTAY)
    Liquid side/ Gas side 1/4"/3/8" 1/4" / 1/2" 1/4" / 1/2" 1/4" / 1/2"
    DC Connection /Wire MC4/AWG 10/12 MC4/AWG 10/12 MC4/AWG 10/12 MC4/AWG 10/12
    Power Consumption
    Rated Power Input W 450 750 950 1250
    Rated Current A 2.05 3.41 4.32 5.68
    Dimension
    Indoor Unit NET mm 775*260*210 775*260*210 990*320*210 990*320*210
    Shipping mm 840*325*265 840*325*265 1070*395*285 1070*395*285
    Outdoor Unit NET mm 790*260*540 790*260*540 850*300*700 850*300*700
    Shipping mm 910*370*610 910*370*610 950*400*750 950*400*750
    Weight
    Indoor Unit Net/Gross kg 11/13 13/15 17/19 19/21
    Outdoor Unit Net/Gross kg 38/40 45/48 48/55 56/62
    MAX SOLAR  PANEL(OPTIONAL) 2x250W/36V 3x250W/36V 4x250W/36V 4x300W/36V
  • Please submit your basic information and we will reply you as soon as possible!

    *

    *

    *

    *
